HomeProductsIsolatorsIsolators - Gate DriversTLP250LF1F

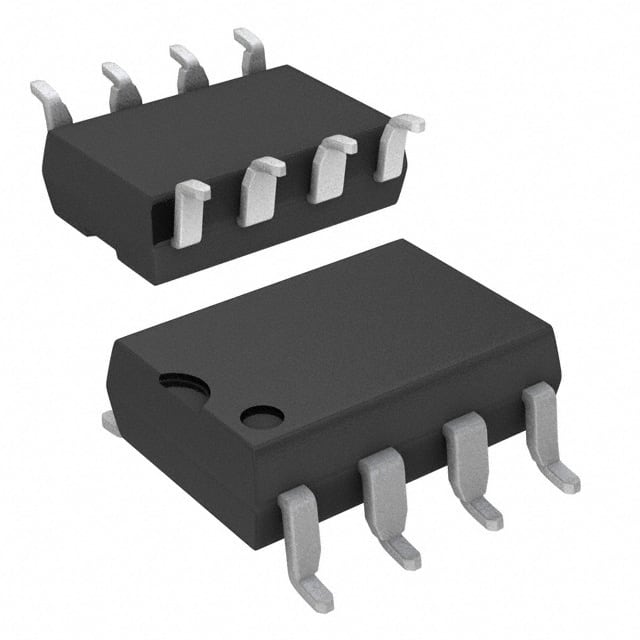

TLP250LF1F Image Image may be representation.
See specs for product details.
TLP250LF1FToshiba Semiconductor and Storage OPTOISO 2.5KV 1CH GATE DRVR 8SMD
Part NumberTLP250LF1F
Package8-SMD, Gull Wing
ManufacturerTAEC Product (Toshiba Electronic Devices and Storage Corporation)
RoHs StatusRoHS Compliant
Manufacturer Part NumberToshiba Semiconductor and Storage-TLP250LF1F
DescriptionOPTOISO 2.5KV 1CH GATE DRVR 8SMD
In stock4163
Data sheet
TLP250LF1F.pdf
Please click " QUICK RFQ " and provide your contact information,
or email us at [email protected].
We will respond promptly to your inquiry.
In stock: 4163 pcs Required fields are indicated by an asterisk ( * )

Please send RFQ, we will respond immediately.

  • Specifications
  • Product Details - TLP250LF1F
  • TLP250LF1F Tech Specifications
    Toshiba Semiconductor and Storage - TLP250LF1F technical specifications, attributes, parameters and parts with similar specifications to Toshiba Semiconductor and Storage - TLP250LF1F
    Manufacturer TAEC Product (Toshiba Electronic Devices and Storage Corporation)
    Voltage - Output Supply 15V ~ 30V
    Voltage - Isolation 2500Vrms
    Voltage - Forward (Vf) (Typ) 1.6V
    Technology Optical Coupling
    Supplier Device Package 8-SMD
    Series -
    Rise / Fall Time (Typ) -
    Pulse Width Distortion (Max) -
    Propagation Delay tpLH / tpHL (Max) 500ns, 500ns
    Package / Case 8-SMD, Gull Wing
    Package Tube
    Operating Temperature -20°C ~ 85°C
    Number of Channels 1
    Mounting Type Surface Mount
    Current - Peak Output 1.5A
    Current - Output High, Low 500mA, 500mA
    Current - DC Forward (If) (Max) 20 mA
    Common Mode Transient Immunity (Min) 5kV/µs
    Base Product Number TLP250
    Approval Agency UR
  • TheTLP250LF1Fis a Isolators component, full developed and mass-produced by Toshiba Semiconductor and Storage manufacturer, subject to rigorous quality control and successfully meeting production standards. The product description is OPTOISO 2.5KV 1CH GATE DRVR 8SMD and it falls under the category of Isolators - Gate Drivers, with Manufacturer of TAEC Product (Toshiba Electronic Devices and Storage Corporation) and Voltage - Output Supply of 15V ~ 30V and Voltage - Isolation of 2500Vrms. Efficient purchasing through Toshiba-Chip.com. Here, you can find a wide variety of electronic components produced by manufacturers worldwide. If you do not find the information you are looking for, you can obtain more valuable information via email [email protected], such as stock quantities, special pricing, datasheets, and more details for TLP250LF1F or order. We are always pleased to hear from you, so feel free to contact us at any time.

Product Comparison

Product Attribute TLP250LF1F TLP251(F) TLP251(TP1,F) TLP2530(TP1,F)
Part Number TLP250LF1F TLP251(F) TLP251(TP1,F) TLP2530(TP1,F)
Manufacturer Toshiba Semiconductor and Storage Toshiba Semiconductor and Storage Toshiba Semiconductor and Storage Toshiba Semiconductor and Storage
Propagation Delay tpLH / tpHL (Max) 500ns, 500ns 1µs, 1µs 1µs, 1µs -
Number of Channels 1 1 1 2
Voltage - Output Supply 15V ~ 30V 10V ~ 30V 10V ~ 30V -
Current - Peak Output 1.5A 400mA 400mA -
Operating Temperature -20°C ~ 85°C -20°C ~ 85°C -20°C ~ 85°C -55°C ~ 100°C
Common Mode Transient Immunity (Min) 5kV/µs 5kV/µs 5kV/µs -
Supplier Device Package 8-SMD 8-DIP 8-SMD 8-SMD
Technology Optical Coupling Optical Coupling Optical Coupling -
Voltage - Forward (Vf) (Typ) 1.6V 1.6V 1.6V 1.65V
Package / Case 8-SMD, Gull Wing 8-DIP (0.300', 7.62mm) 8-SMD, Gull Wing 8-SMD, Gull Wing
Mounting Type Surface Mount Through Hole Surface Mount Surface Mount
Approval Agency UR UR UR -
Pulse Width Distortion (Max) - - - -
Current - DC Forward (If) (Max) 20 mA 20 mA 20 mA 25 mA
Package Tube Tube Tape & Reel (TR) Bulk
Base Product Number TLP250 TLP251 TLP251 TLP2530
Voltage - Isolation 2500Vrms 2500Vrms 2500Vrms 2500Vrms
Current - Output High, Low 500mA, 500mA 100mA, 100mA 100mA, 100mA -
Series - - - -
Rise / Fall Time (Typ) - - - -
