Name: Toshiba Semiconductor and Storage TLP631(F)
Brand: Toshiba Semiconductor and Storage
SKU: TLP631(F)
Availability: InStock

Specifications
Product Details - TLP631(F)

TLP631(F) Tech Specifications
Toshiba Semiconductor and Storage - TLP631(F) technical specifications, attributes, parameters and parts with similar specifications to Toshiba Semiconductor and Storage - TLP631(F)

Manufacturer TAEC Product (Toshiba Electronic Devices and Storage Corporation)

Voltage - Output (Max) 55V

Voltage - Isolation 5000Vrms

Voltage - Forward (Vf) (Typ) 1.15V

Vce Saturation (Max) 400mV

Turn On / Turn Off Time (Typ) 3µs, 3µs

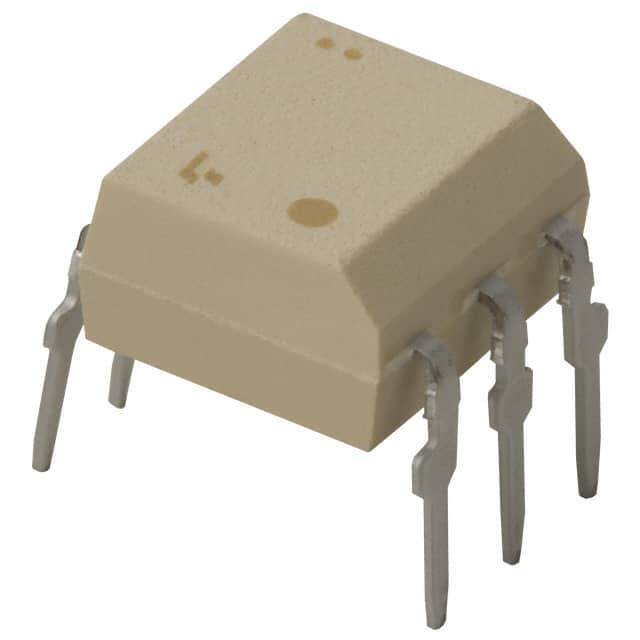

Supplier Device Package 6-DIP

Series -

Rise / Fall Time (Typ) 2µs, 3µs

Package / Case 6-DIP (0.300', 7.62mm)

Package Tube

Output Type Transistor with Base

Operating Temperature -55°C ~ 100°C

Number of Channels 1

Mounting Type Through Hole

Input Type DC

Current Transfer Ratio (Min) 50% @ 5mA

Current Transfer Ratio (Max) 600% @ 5mA

Current - Output / Channel 50mA

Current - DC Forward (If) (Max) 60 mA

Base Product Number TLP631
TheTLP631(F)is a Isolators component, full developed and mass-produced by Toshiba Semiconductor and Storage manufacturer, subject to rigorous quality control and successfully meeting production standards. The product description is OPTOISO 5KV TRANS W/BASE 6DIP and it falls under the category of Optoisolators - Transistor, Photovoltaic Output, with Manufacturer of TAEC Product (Toshiba Electronic Devices and Storage Corporation) and Voltage - Output (Max) of 55V and Voltage - Isolation of 5000Vrms. Efficient purchasing through Toshiba-Chip.com. Here, you can find a wide variety of electronic components produced by manufacturers worldwide. If you do not find the information you are looking for, you can obtain more valuable information via email [email protected], such as stock quantities, special pricing, datasheets, and more details for TLP631(F) or order. We are always pleased to hear from you, so feel free to contact us at any time.

Product Comparison

Product Attribute
Part Number	TLP631(BL,F)	TLP631(LF5,F)	TLP631(GR-TP1,F)	TLP631(GB-LF1,F)
Manufacturer	Toshiba Semiconductor and Storage	Toshiba Semiconductor and Storage	Toshiba Semiconductor and Storage	Toshiba Semiconductor and Storage
Current Transfer Ratio (Max)	-	-	-	-
Vce Saturation (Max)	-	-	-	-
Voltage - Isolation	-	-	-	-
Number of Channels	-	-	-	-
Package / Case	-	-	-	-
Package	-	Bulk	Bulk	Bulk
Input Type	-	-	-	-
Voltage - Forward (Vf) (Typ)	-	-	-	-
Voltage - Output (Max)	-	-	-	-
Turn On / Turn Off Time (Typ)	-	-	-	-
Base Product Number	-	-	-	-
Current - Output / Channel	-	-	-	-
Current Transfer Ratio (Min)	-	-	-	-
Rise / Fall Time (Typ)	-	-	-	-
Series	-	*	*	*
Mounting Type	-	-	-	-
Current - DC Forward (If) (Max)	-	-	-	-
Operating Temperature	-	-	-	-
Output Type	-	-	-	-
Supplier Device Package	-	-	-	-
