HomeProductsIsolatorsOptoisolators - Transistor, Photovoltaic OutputTLP385(D4BLLTL,E

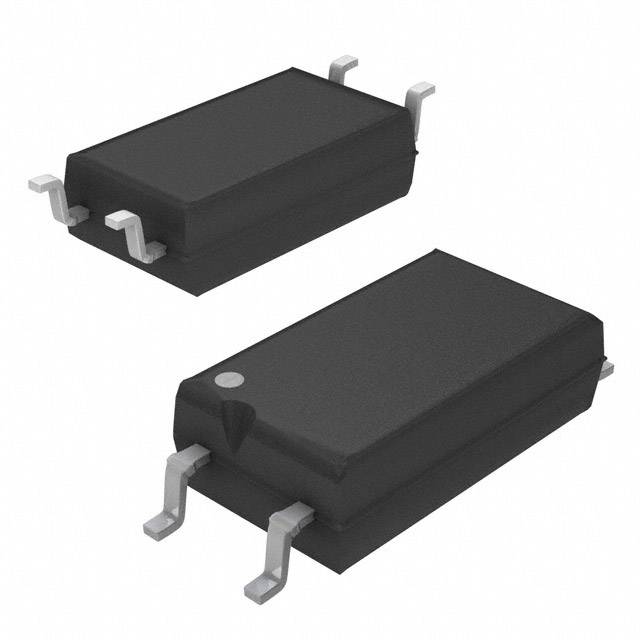

TLP385(D4BLLTL,E Image Image may be representation.
See specs for product details.
TLP385(D4BLLTL,EToshiba Semiconductor and Storage TRANSISTOR OPTOCOUPLER; 4-PIN SO
Part NumberTLP385(D4BLLTL,E
Package6-SOIC (0.173", 4.40mm Width), 4 Leads
ManufacturerTAEC Product (Toshiba Electronic Devices and Storage Corporation)
RoHs StatusRoHS Compliant
Manufacturer Part NumberToshiba Semiconductor and Storage-TLP385(D4BLLTL,E
DescriptionTRANSISTOR OPTOCOUPLER; 4-PIN SO
In stock96727
Data sheet
1.TLP385(D4BLLTL,E.pdf 2.TLP385(D4BLLTL,E.pdf 3.TLP385(D4BLLTL,E.pdf
Please click " QUICK RFQ " and provide your contact information,
or email us at [email protected].
We will respond promptly to your inquiry.
In stock: 96727 pcs Required fields are indicated by an asterisk ( * )

Please send RFQ, we will respond immediately.

  • Specifications
  • Product Details - TLP385(D4BLLTL,E
  • TLP385(D4BLLTL,E Tech Specifications
    Toshiba Semiconductor and Storage - TLP385(D4BLLTL,E technical specifications, attributes, parameters and parts with similar specifications to Toshiba Semiconductor and Storage - TLP385(D4BLLTL,E
    Manufacturer TAEC Product (Toshiba Electronic Devices and Storage Corporation)
    Voltage - Output (Max) 80V
    Voltage - Isolation 5000Vrms
    Voltage - Forward (Vf) (Typ) 1.25V
    Vce Saturation (Max) 300mV
    Turn On / Turn Off Time (Typ) 3µs, 3µs
    Supplier Device Package 6-SO, 4 Lead
    Series -
    Rise / Fall Time (Typ) 2µs, 3µs
    Package / Case 6-SOIC (0.173", 4.40mm Width), 4 Leads
    Package Tape & Reel (TR)
    Output Type Transistor
    Operating Temperature -55°C ~ 110°C
    Number of Channels 1
    Mounting Type Surface Mount
    Input Type DC
    Current Transfer Ratio (Min) 200% @ 5mA
    Current Transfer Ratio (Max) 400% @ 5mA
    Current - Output / Channel 50mA
    Current - DC Forward (If) (Max) 50 mA
    Base Product Number TLP385
  • TheTLP385(D4BLLTL,Eis a Isolators component, full developed and mass-produced by Toshiba Semiconductor and Storage manufacturer, subject to rigorous quality control and successfully meeting production standards. The product description is TRANSISTOR OPTOCOUPLER; 4-PIN SO and it falls under the category of Optoisolators - Transistor, Photovoltaic Output, with Manufacturer of TAEC Product (Toshiba Electronic Devices and Storage Corporation) and Voltage - Output (Max) of 80V and Voltage - Isolation of 5000Vrms. Efficient purchasing through Toshiba-Chip.com. Here, you can find a wide variety of electronic components produced by manufacturers worldwide. If you do not find the information you are looking for, you can obtain more valuable information via email [email protected], such as stock quantities, special pricing, datasheets, and more details for TLP385(D4BLLTL,E or order. We are always pleased to hear from you, so feel free to contact us at any time.

Product Comparison

Product Attribute TLP385(D4BLLTR,E TLP385(D4BL-TL,E TLP385(D4BL-TR,E TLP385(D4GB-TL,E
Part Number TLP385(D4BLLTR,E TLP385(D4BL-TL,E TLP385(D4BL-TR,E TLP385(D4GB-TL,E
Manufacturer Toshiba Semiconductor and Storage Toshiba Semiconductor and Storage Toshiba Semiconductor and Storage Toshiba Semiconductor and Storage
Package / Case - - - -
Mounting Type - - - -
Package - Bulk Bulk Bulk
Current Transfer Ratio (Min) - - - -
Voltage - Output (Max) - - - -
Operating Temperature - - - -
Vce Saturation (Max) - - - -
Number of Channels - - - -
Current - Output / Channel - - - -
Current Transfer Ratio (Max) - - - -
Output Type - - - -
Rise / Fall Time (Typ) - - - -
Input Type - - - -
Series - * * *
Supplier Device Package - - - -
Voltage - Forward (Vf) (Typ) - - - -
Voltage - Isolation - - - -
Current - DC Forward (If) (Max) - - - -
Base Product Number - - - -
Turn On / Turn Off Time (Typ) - - - -
